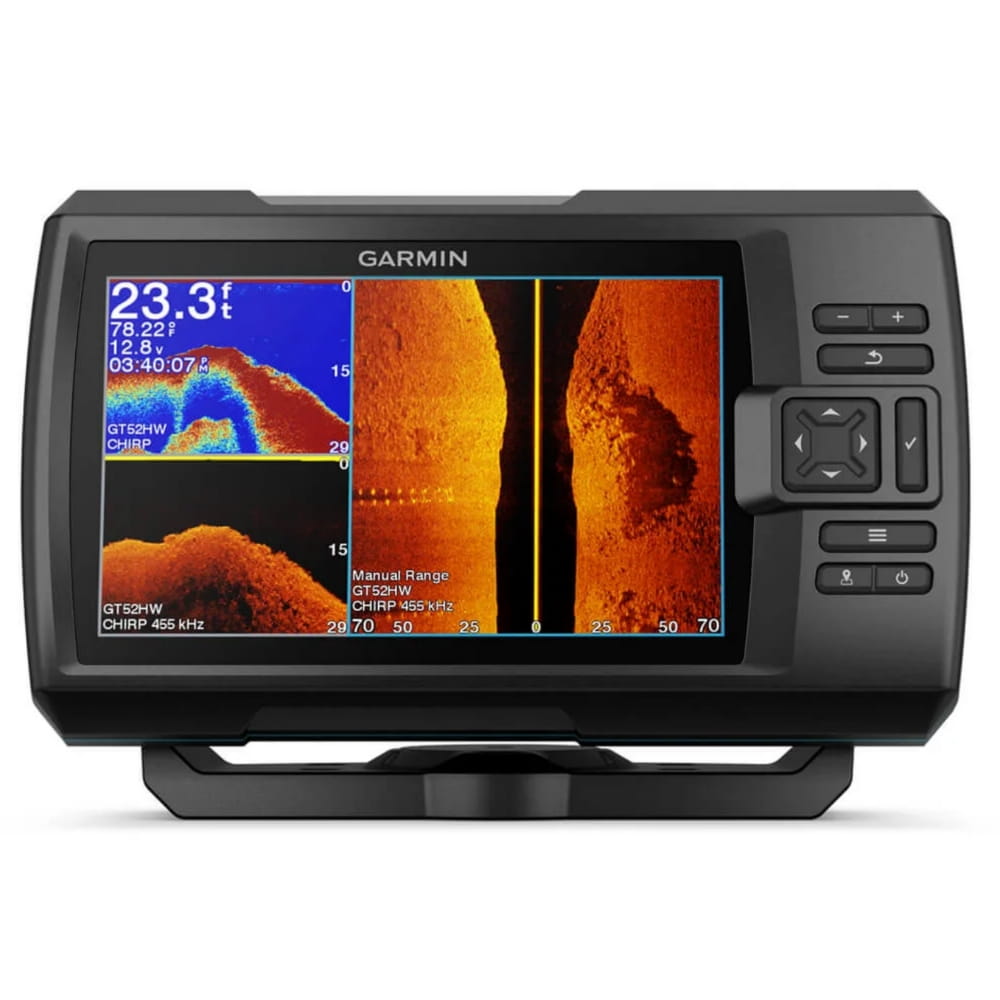

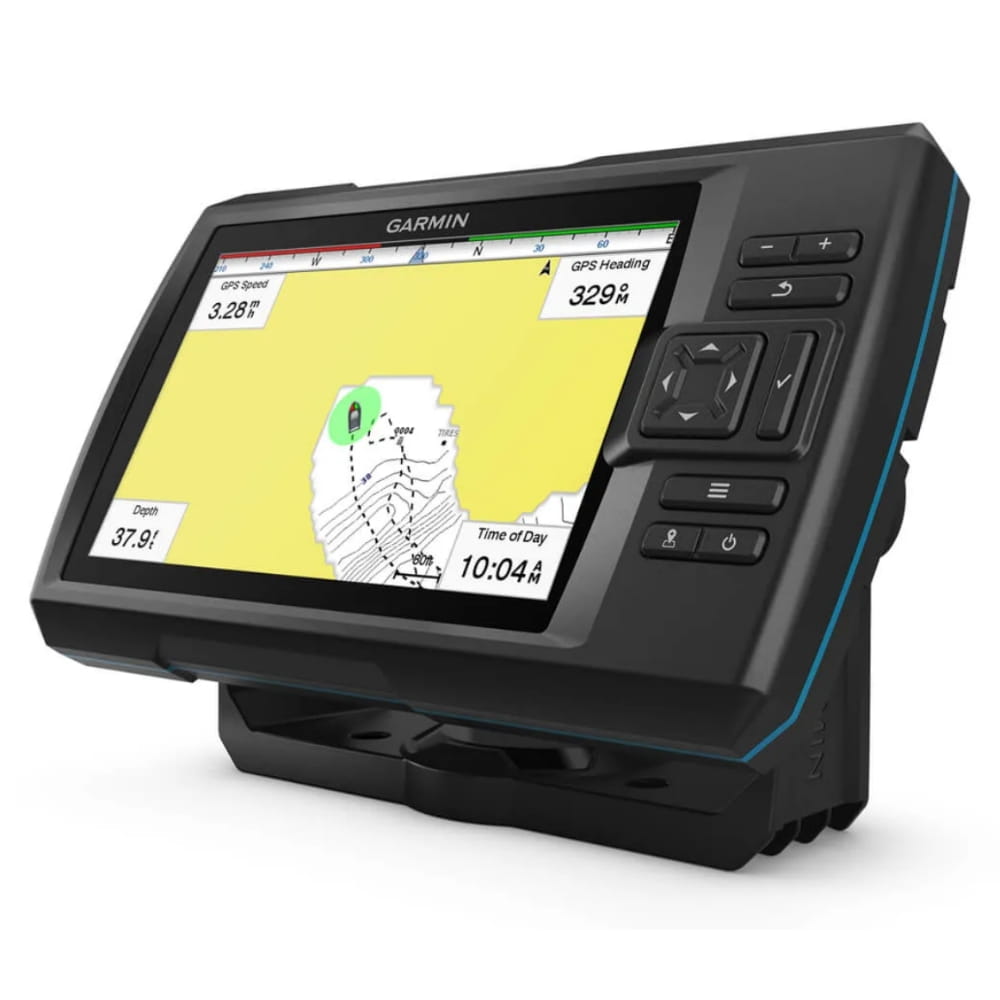

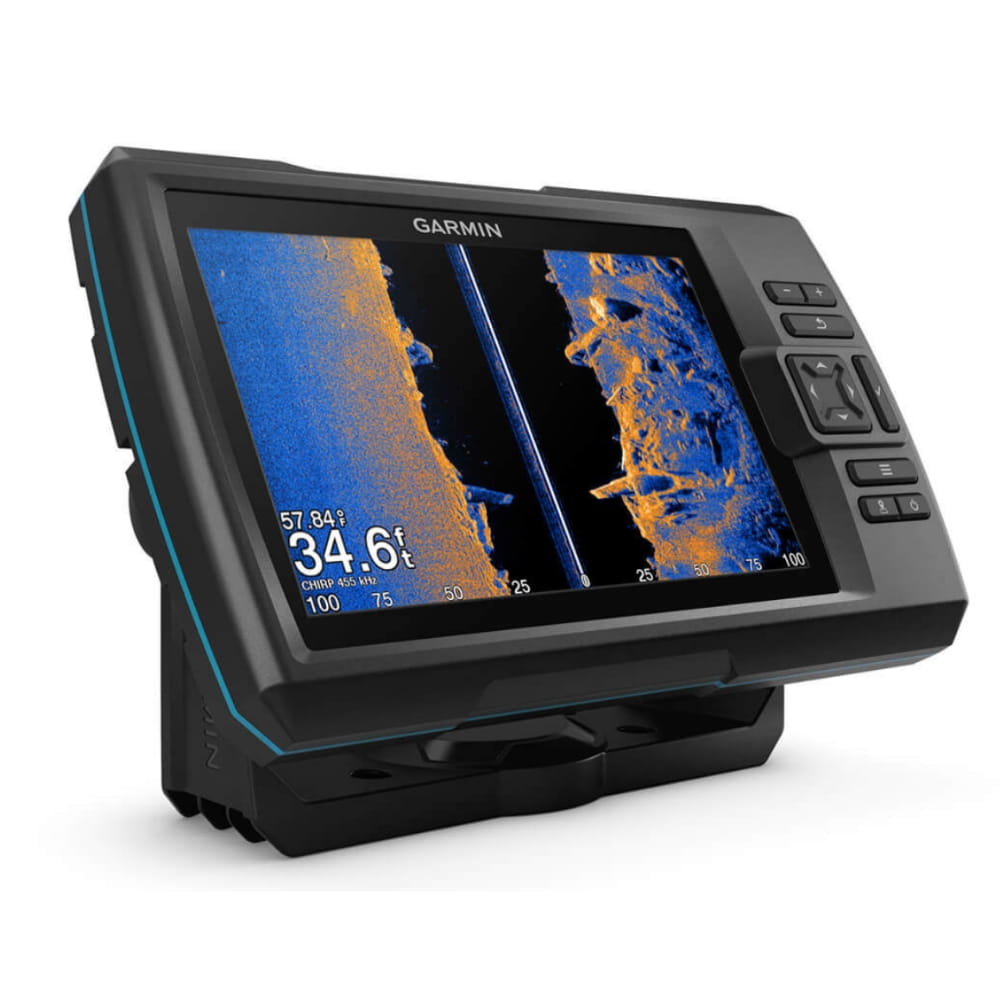

Garmin Fishfinder Striker Vivid 7sv + GT52 Transducer
Product information "Garmin Fishfinder Striker Vivid 7sv + GT52 Transducer"
Garmin
Echolot Striker Vivid 5cv + GT52 Transducer
Find every fish - Vivid sonar images and precise markings for your best fishing spots!
With this fishfinder and the GT52 transducer, you will see the underwater world in fascinating clarity and color. You can choose from 7 vivid color options that perfectly highlight your fishing style, and take fish and structure searching to a new level.The included transducer provides you with both traditional CHIRP and ClearVü sonar functions, allowing you to detect fish and structures with the highest detail accuracy. Record your best fishing spots and find them quickly at any time with waypoint marking.
Thanks to the precise display of depth lines down to 30 cm accuracy, you get a detailed picture of the water bottom and a clear view of your next catch.
Product details:
- Sonar colors: 7 vivid color options to customize your style
- Transducer: GT20 transducer with CHIRP and ClearVü for high-resolution underwater views
- Waypoint marking: Storage of fishing spots for easy retrieval
- Depth line display: Representation of depth lines in 30 cm grid (1 foot)
- Display size: 7-inch display for compact and detailed visualization
Technical details:
General
Dimensions: 23.5 x 14 x 5.8 cm (9.3 x 5.5 x 2.3 inches)
Weight: 0.8 kg (1.7 lbs)
Waterproof: IPX7
Display type: WVGA color display
Display size (W x H): 8.6 x 15.4 cm (3.4" x 6.1")
Diagonal: 17.8 cm (7") diagonal
Display resolution (W x H): 800 x 480 pixels
Mounting options: flush, tilt/swivel
Button control: Buttons
Maps and memory
- Waypoints: 5000
- Track points: 50,000
- Tracks: 50
- Routes: 100
Sensors
- GPS
- Built-in receiver
- WAAS support
Optional map support
- Garmin Quickdraw Contours
Electrical data
- Power supply: 12 to 20 Vdc
- Typical current draw: 0.67 A
- Maximum current draw: 1.5 A
- Power consumption: 8.0
Sonar features and specifications
- Sonar display
- Traditional sonar (Dual frequency/Dual Beam): Built-in
- ClearVü
- Supported frequencies: Traditional: 50/77/200 kHz, CHIRP (medium and high); ClearVü: 260/455/800 kHz
- Transmission power: 500 W (effective)
- Bottom-Lock (shows results from the bottom up)
- Logging and graphical display of water temperature

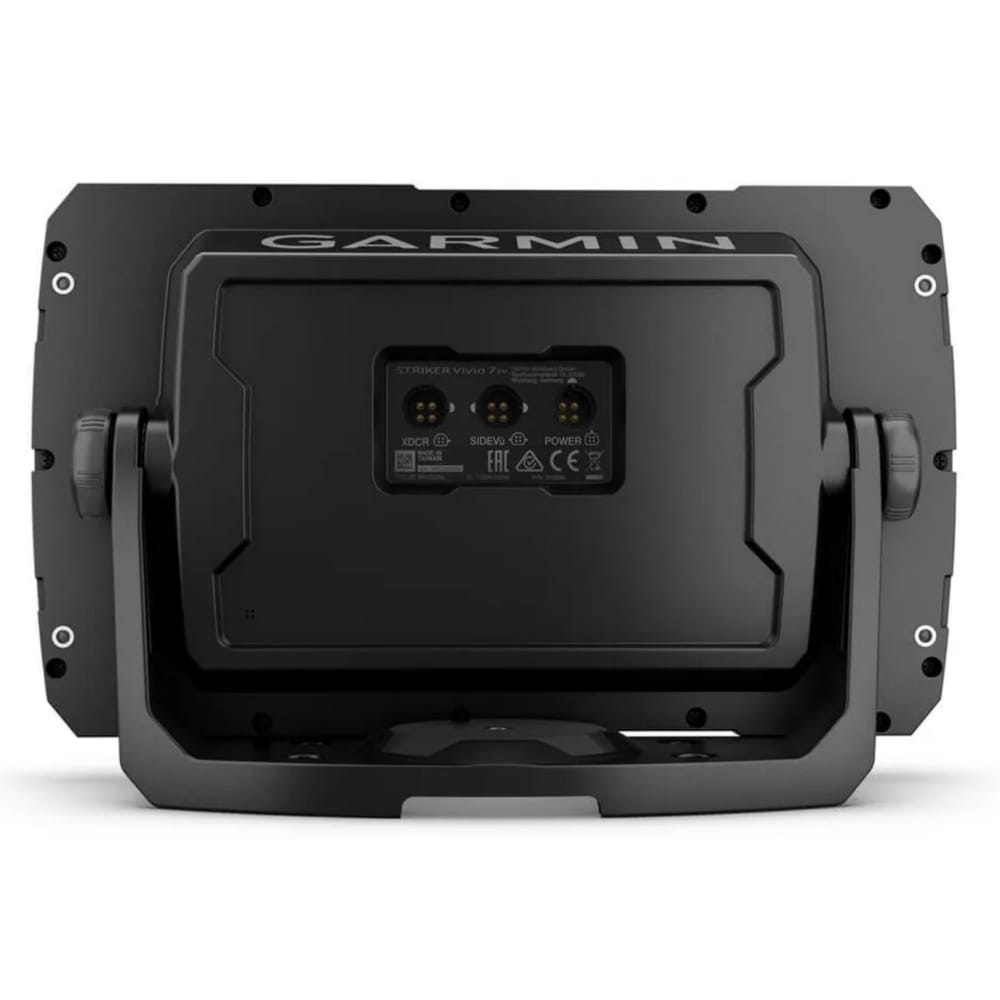

Connections
- 4-pin transducer connectors: 2
Fishfinder features
- Split-screen zoom
- Fish symbol ID (for identifying fish schools)
- AutoGain technology (minimizes interference and maximizes targets)
- Adjustable depth line (measures depth of underwater objects)
- A-Scope (real-time display of fish schools detected by the transducer signal)
- Water temperature sensor included in the scope of delivery
- Depth range shading
Additional
- Additional: A 4-pin transducer connection
- Wireless connectivity: Yes
- Quickdraw Contours
- Built-in GPS
- Marking waypoints
- Course over ground (COG)
- Current draw at 12 V: 0.55 A
Scope of delivery:
- STRIKER Vivid 7cv
- GT52-TM Transducer
- Transducer adapter cable, 12 pins to twice 4 pins
- Power/data cable
- Tilt/swivel mount
- Hardware
- Garmin sticker
- Documentation
