Garmin Fishfinder Striker Vivid 9sv + Transducer
Product information "Garmin Fishfinder Striker Vivid 9sv + Transducer"
Garmin
Fishfinder Striker Vivid 9sv + Transducer

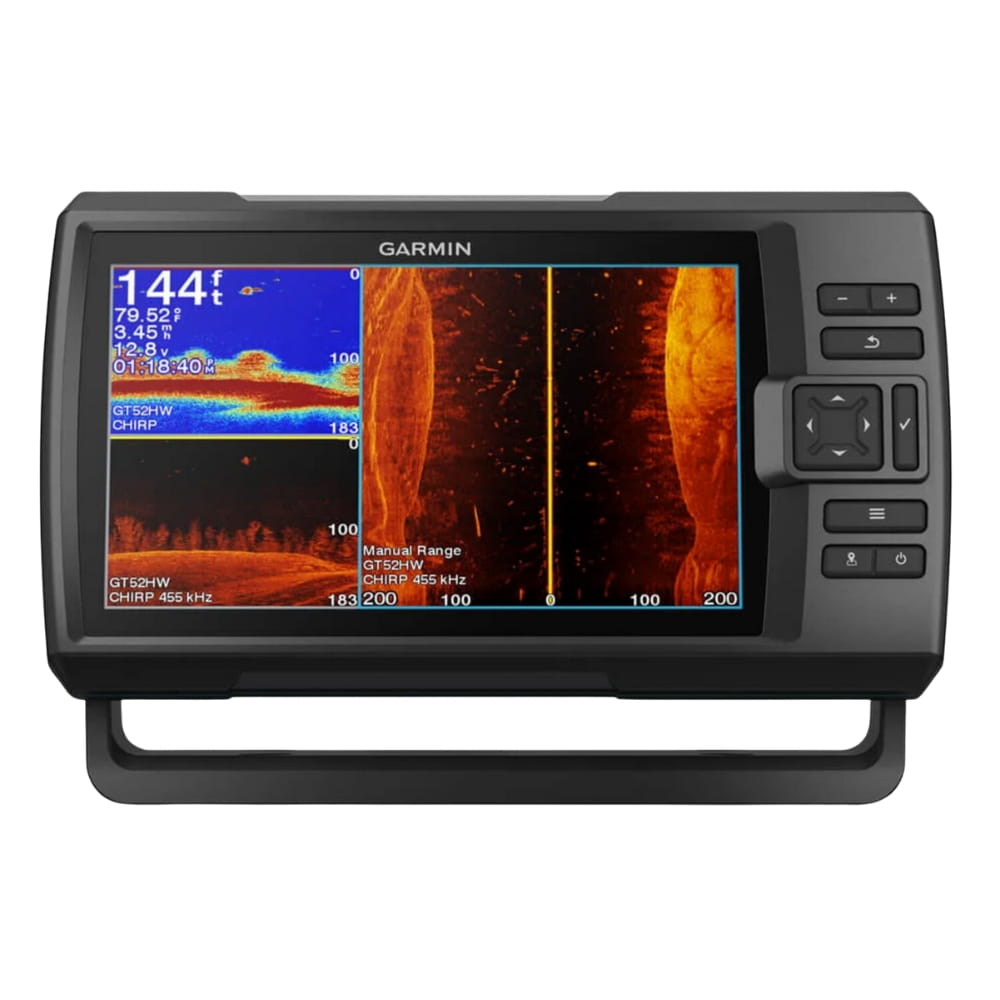

See the underwater world in vivid colors!
Do you want to see fish and structures in the highest clarity and detail? With the Garmin Striker Vivid 9sv + Transducer, you get a powerful fishfinder that offers you just that! Adjust the display colors, your position, and your fishfinder for your perfect day on the water and discover a completely new view of the underwater world.Clear colorful fishfinder output
Choose from 7 vibrant color options to see fish and structures on the 9-inch display of the Striker Vivid with maximum contrast. This variety of colors helps you to represent the underwater world as detailed and clear as never before – adapted to your fishing style.
Integrated fishfinder

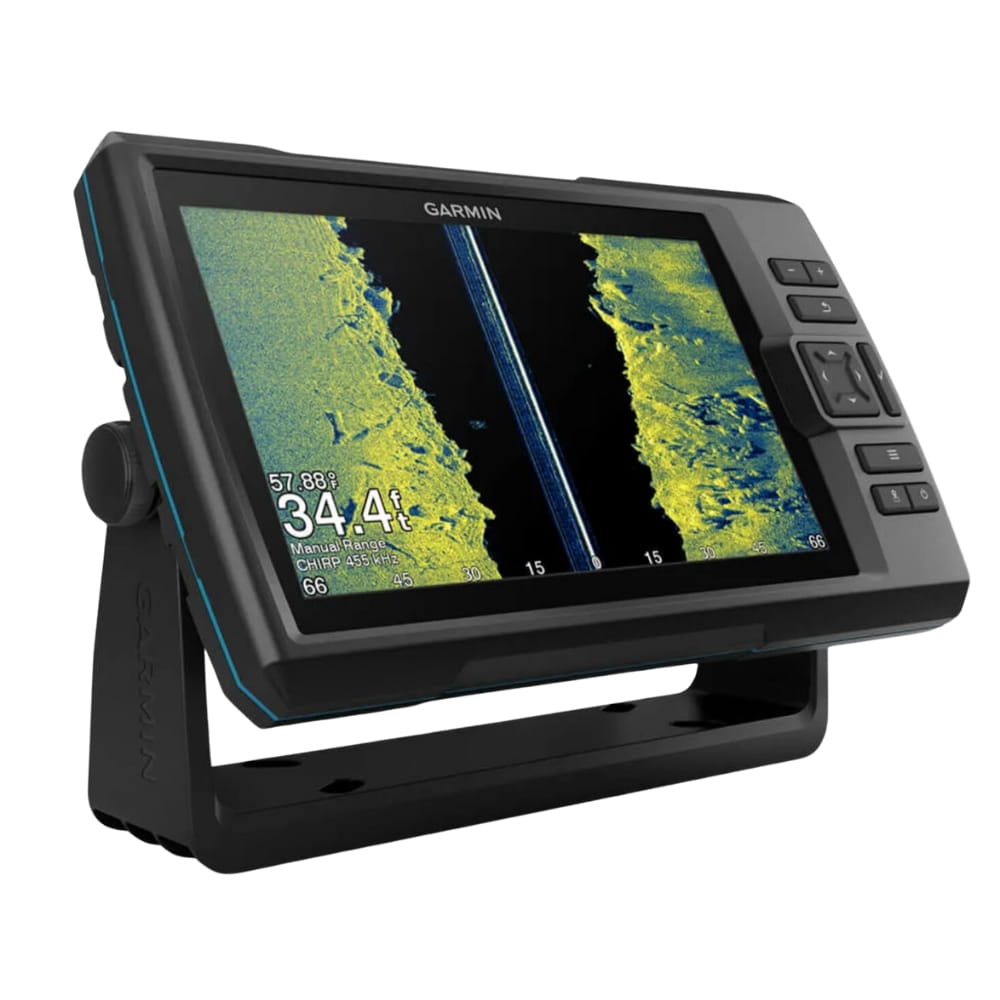

With the included GT52 transducer, you can fully utilize the Garmin CHIRP, ClearVü, and SideVü fishfinder functions. This gives you always the best overview of the depth, fish, and structures, which gives you a clear advantage while fishing.
Waypoint marking

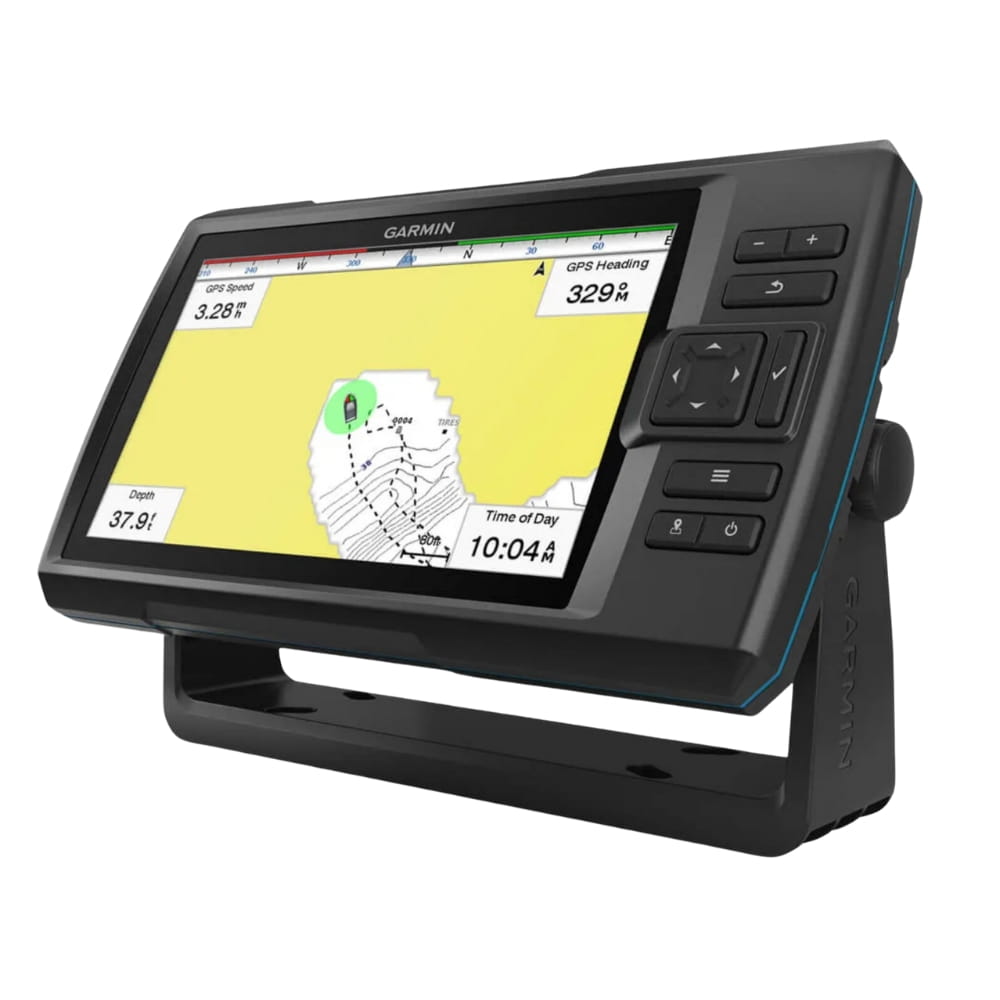

Never lose a great fishing spot again! Mark your waypoints with the built-in GPS to return to your hotspots at any time. This way, you navigate effortlessly and accurately to the best spots.
High-sensitivity GPS
With the high-sensitivity GPS, you can not only monitor your speed but also create and plan routes to make your trips even more efficient.
Quickdraw Contours
Save up to 2 million acres of map data with depth contours of 1 foot. This way, you always have a precise map of your favorite fishing waters – exactly according to your needs.
Included mounting hardware
Included in the set are a tilt/swivel mount as well as mounting kits and cables, which enable an easy installation of the Garmin Striker Vivid 9sv.
With this fishfinder, you are well-equipped to get the most out of your fishing experience!
Product details:
- Contents of delivery: STRIKER Vivid 9sv
- GT52HW-TM Transducer
- Power/data cable
- Transducer adapter cable, 12 pins to dual 4 pins
- Tilt mount
- Hardware
- Garmin sticker
- Documentation
Technical data:
General
- Dimensions: 28.2 x 16.5 x 6 cm (11.1 x 6.5 x 2.4 inches)
- Weight: 1.1 kg (2.4 lbs)
- Waterproof: IPX7
- Display type: WVGA color display
- Display size, W x H: 4.4" x 7.8" (11.2 x 19.8 cm); 9.0" diag (22.8 cm)
- Display resolution, W x H: 800 x 480 pixels
- Mounting options: flush, tilt/swivel
- Control type: Buttons
Maps and memory
- Waypoints: 5000
- Track points: 50,000
- Tracks: 50
- Routes: 100
Sensors
- GPS
- Integrated receiver
- WAAS support
Optional map support
- Garmin Quickdraw Contours
Electrical data
- Power supply: 12 to 20 Vdc
- Typical current draw: 0.75 A
- Maximum current draw: 1.5 A
- Power consumption: 9.0
Fishfinder functions and technical data
- Fishfinder display
- Traditional fishfinder (Dual frequency/Dual Beam): Built-in
- ClearVü:
- SideVü
- Supported frequencies: Traditional: 50/77/200 kHz, CHIRP (medium and high); ClearVü: 260/455/800 kHz
- Transmission power: 500 W (RMS)
- Bottom-Lock (shows results from the bottom up)
- Logging and graphical display of water temperature

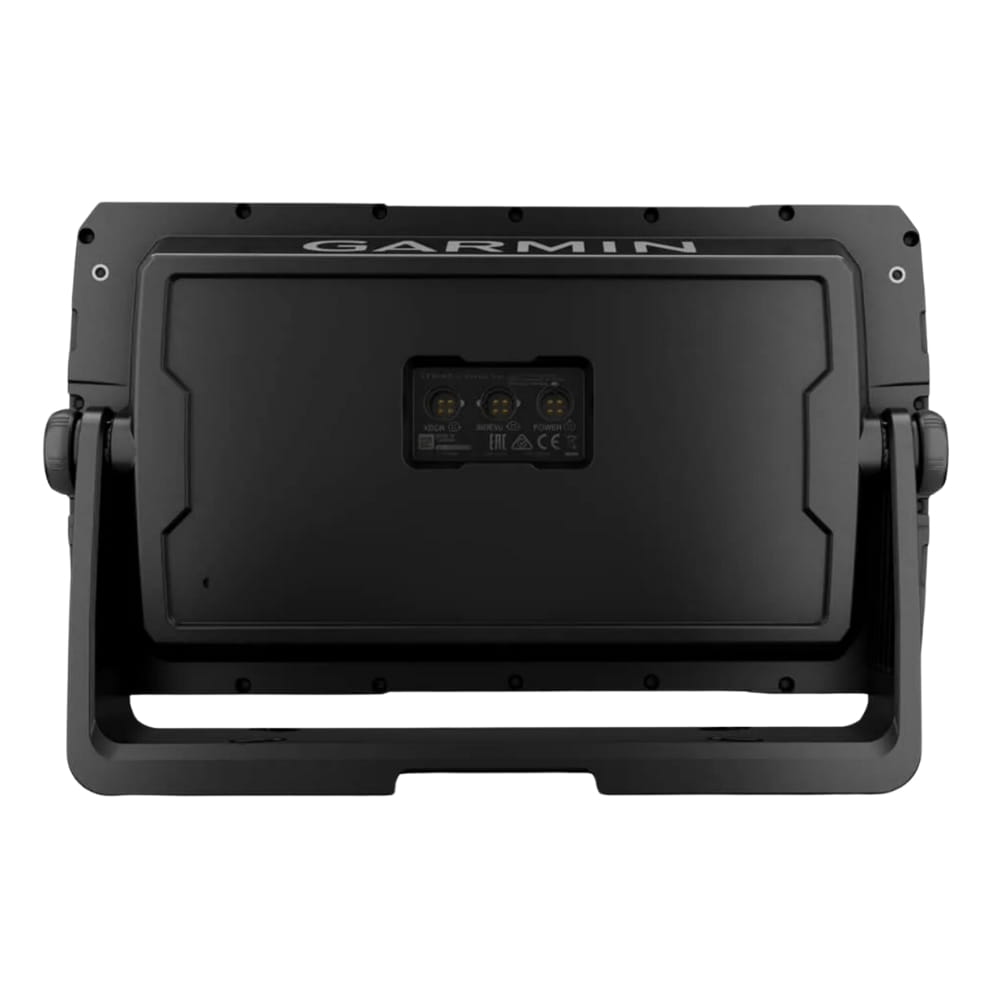

Connections
- 4-pin transducer connections: 2
- Garmin WLAN network (local connection)
Fishfinder features
- Split-screen zoom
- Fish symbol ID (for identifying fish schools)
- AutoGain technology (minimizes interference and maximizes targets)
- Adjustable depth line (measures depth of underwater objects)
- A-Scope (real-time display of fish schools detected by the transducer signal)
- Water temperature sensor included in delivery
- Depth range shading
